Step-by-Step Guide to Understanding EV Circuit Diagrams and Components
Begin by isolating high-voltage components in your design. Modern propulsion units rely on lithium-ion packs rated between 300–800V, with Tesla’s architecture using a 400V baseline and newer models targeting 800V for faster charging. Separate the battery management system (BMS) from the inverter stack–misalignment here causes thermal runaway risks. Use biaxial current sensors (Hall-effect) to monitor both charge and discharge cycles simultaneously, ensuring accuracy within ±0.5%.
Prioritize the inverter topology. Three-phase bridge configurations dominate, but SiC MOSFETs outperform IGBTs in efficiency–98.5% vs. 95%–due to lower switching losses. For high-performance setups, incorporate a dual-active bridge (DAB) converter between the battery and traction motor. This allows bidirectional power flow without additional relays, critical for regenerative braking systems where energy recovery can reach 20–30% of total efficiency gains.
Integrate a dedicated pre-charge relay and resistor circuit to avoid inrush currents. A 1kΩ, 10W resistor paired with a 10µF capacitor smooths voltage spikes during startup. Forgetting this step risks damaging control boards–80% of early prototype failures stem from transient voltage surges. Add isolation between HV and LV circuits using optocouplers or digital isolators (e.g., ADuM1400 series) to comply with ISO 6469 safety standards.
Route CAN FD buses at 2 Mbps for real-time telemetry. Allocate separate channels for BMS, motor controller, and charger units to prevent data collisions. Use twisted pair wiring with a 120Ω termination resistor at each end; stray capacitance above 50pF/m degrades signal integrity. For redundancy, implement LIN bus for low-speed peripherals like DC-DC converters (12V/48V), ensuring backup power during HV system faults.
Place fuses strategically: 250A near the battery pack, 50A for auxiliary systems. Avoid blade-style fuses in HV paths–slow response times lead to catastrophic shorts. Opt for pyrofuses (e.g., ETA 1815) or semiconductor-grade polyfuses that trip at 150°C. Label every node with test points: 100mV resolution for current, 1mV for voltage. Omit debug points, and troubleshooting becomes a guaranteed waste of time.
Key Schematics for Automotive Power Systems
Begin by isolating the high-voltage battery pack’s output terminals with a 1,000V-rated relay before any diagnostic work. Ensure the relay’s coil operates at 12V DC to match auxiliary circuits; failure to do so risks incomplete disconnect during service. Below is a breakdown of relay specs for common applications:
| Application | Contact Rating (A) | Coil Voltage (V) | Response Time (ms) |
|---|---|---|---|
| Battery disconnect | 400 | 12 | |
| DC-DC converter | 200 | 12 | |
| Onboard charger | 100 | 24 |
Wire the traction inverter’s gate drivers with shielded twisted pair cables; noise from PWM signals can induce errors in throttle response if unshielded. Use 0.75 mm² wires for signal lines and 50 mm² for main current paths–thinner wires cause voltage drops exceeding 0.1V per meter under 200A loads. Fuse each branch circuit separately: 30A for auxiliary systems, 80A for drive motors, and 125A for fast-charging circuits.
Mount current sensors near the battery’s negative terminal to avoid ground loops. Hall-effect sensors are preferred over shunt resistors for high-current traces (above 150A) due to negligible heat dissipation and galvanic isolation. Calibrate sensors to output 0-5V for 0-500A ranges; linear accuracy must stay within ±0.5% to prevent false torque-limiting faults. Below are sensor placement tolerances:
| Current Range (A) | Sensor Placement (mm from terminal) | Voltage Output (V) |
|---|---|---|
| 0-100 | ≤25 | 0-1.66 |
| 100-300 | ≤50 | 1.66-3.33 |
| 300-500 | ≤100 | 3.33-5.0 |
Route CAN bus cables away from power lines; keep a minimum 100mm separation distance to reduce electromagnetic interference. Terminate both ends of the bus with 120Ω resistors–incorrect termination causes data corruption at speeds above 250 kbps. For systems using both high-speed (500 kbps) and low-speed (125 kbps) CAN, employ a separate transceiver chip for each network to prevent cross-talk.
Critical Elements in an Automotive Power System Schematic

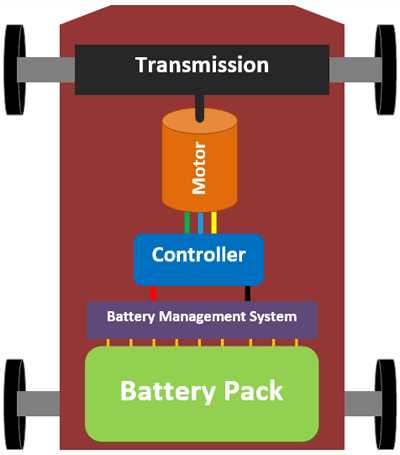

Begin with a high-voltage battery pack–ensure its layout specifies cell configuration (e.g., 400V or 800V nominal), cooling requirements (liquid or air), and current sensors. Mistakes here compromise thermal stability and range prediction. Include a pre-charge relay and contactors to prevent arcing during connection; failing to do so risks catastrophic failure at 200+ amps.
- Power inverter (traction drive): Detail IGBT/MOSFET ratings, switching frequency (typically 5-20 kHz), and DC link capacitor size (e.g., 1000 µF for 400V systems). Overlook these, and efficiency drops below 90%, increasing heat loss.
- On-board charger (OBC): Define input specs (single/three-phase, 3.3-22 kW), PFC stage, and isolation transformer. Non-compliance with ISO 26262 or UL 2202 voids certification.
- DC-DC converter: Specify voltage levels (e.g., 400V to 12V), power rating (1-3 kW), and galvanic isolation. Skipping EMI filters here introduces noise into low-voltage systems, disrupting sensors.
Integrate a battery management system (BMS) with CAN FD/Wi-Fi interfaces for real-time monitoring. Focus on cell balancing circuits–passive (resistor-based) for cost, active (buck-boost) for 5-10% longer lifespan. Exclude pyro fuses or current shunt placements, and short-circuit protection fails, causing thermal runaway at >60°C. Verify HVIL (High Voltage Interlock Loop) continuity; a single broken connection disables safety protocols mandated by IEC 61851.
Label every component with part numbers, wire gauges (e.g., 4 AWG for 100A+), and insulation ratings (XLPE for 600V+). Use color-coding per ISO 6469-3: orange for high voltage, red for >30V DC, blue for neutral. Cross-reference with a fuse chart–20A for lighting, 300A for traction–and ensure ground paths meet chassis resistance
Wiring Layout for High-Voltage Battery Systems
Conductors rated for at least 1000V DC, such as tinned copper with XLPE insulation, must be used for all main busbars in storage packs exceeding 400V. Route positive and negative rails at least 200mm apart–never parallel–to minimize magnetic field interference and inductive losses. Use colored sleeving (orange for positive, blue for negative) and heat-shrink tubing at connectors to prevent accidental shorts; apply torque specs strictly (e.g., 5Nm for M8 terminals).
Implement a dedicated 48V auxiliary harness for BMS and cooling pumps, kept entirely separate from the 800V+ main lines. Employ twisted-pair wiring for all sensor leads (e.g., temperature probes, current shunts) with a twist ratio of 12 turns per meter to cancel noise. Shield each pair with braided tinned copper grounded at a single star point near the controller to avoid ground loops.
Position contactors as close to the accumulator as possible–ideally within 300mm of the cells–to reduce voltage drop under 1% during peak discharge (e.g., 300A). Specify arcing-resistant silver-plated contacts with a minimum breaking capacity of 150% of nominal current; test dielectric strength post-assembly with 2200V AC for 60 seconds. Incorporate pre-charge resistors rated for 2kΩ ±5% in series with the main contactor to limit inrush to under 50A.
Secure all high-current conductors with non-conductive clamps every 150mm along rigid sections and every 75mm on flexible segments to prevent chafing. Apply dielectric grease to all bolted connections and verify resistance below 50μΩ after thermal cycling (-40°C to +85°C). Store spare harness segments in sealed ESD bags with desiccant; label every termination with date-coded heat-shrink markers matching the schematic revision.
Optimizing Power Flow Between Drive Motor and Converter
Ensure the converter’s switching frequency aligns with the motor’s rated speed by calculating the optimal PWM ratio: for a 3-phase induction machine operating at 48V DC bus, target 8–12 kHz to minimize harmonic distortion below 3% THD while keeping switching losses under 2% of total power throughput. Use SiC MOSFETs rated for 100A continuous current if the motor demands peak torque above 80 Nm; their lower gate charge reduces dead-time losses by up to 30% compared to IGBTs.
Route high-current paths with copper busbars no thinner than 3 mm per 100A of phase current; bond the converter’s DC-link capacitors directly to the busbar terminals using M6 bolts torqued to 8 Nm to eliminate inductive voltage spikes exceeding 1.5× nominal voltage during regenerative braking. Implement snubber capacitors (1 µF, 100V X7R) across each phase leg to clamp transient voltages below 65V on a 48V system.
Configure the converter’s dead-time at 2 µs for motors spinning above 3000 rpm; below this threshold, increase dead-time to 4 µs to prevent shoot-through during prolonged low-speed operation. Store the dead-time values in EEPROM with error-checking to adjust dynamically based on motor temperature readings from onboard NTC sensors–compensate by raising dead-time 0.5 µs for every 10°C above 80°C rotor temperature.
Calibrate current sensors using a 1 kHz AC injection at 5% of rated current; measure phase shift between injected and sensed signals–any deviation above 1.5° indicates misalignment requiring sensor recalibration via software lookup tables. Log raw ADC values at 20 kHz sampling rate during initial commissioning to detect aliasing caused by insufficient anti-aliasing filter cutoff; redesign filters if overshoot exceeds 10% of injected amplitude.
Isolate gate drivers from logic ground using 5 kV reinforced isolation barriers (e.g., ADuMxx series); place isolated gate resistors (10 Ω for turn-on, 5 Ω for turn-off) directly on the driver board to reduce ringing below 5MHz. Verify creepage distances on PCB traces–minimum 4 mm for 48V systems–and coat critical traces with 50 µm conformal coating to prevent arcing in humid conditions.
