3 Phase Motor VFD Wiring Guide with Circuit Schematic

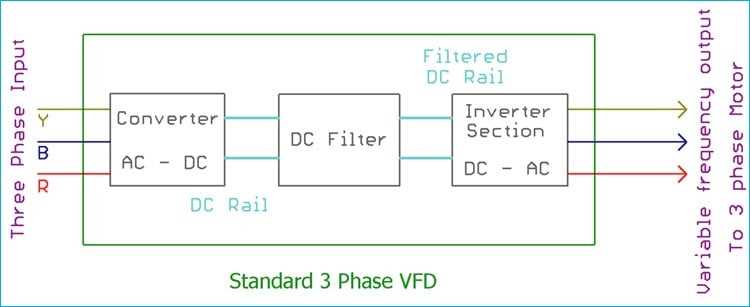

Select a 6-pulse rectifier configuration for efficient conversion of incoming AC to DC when designing the power section of a variable-speed drive. This topology minimizes harmonic distortion and reduces the need for additional filtering compared to simpler setups. Pair it with a DC bus voltage stabilized via capacitors calculated at 80µF per kW of drive rating, ensuring ripple stays below 5% under full load. For 400V systems, maintain the bus at 560–580V DC to account for line fluctuations.

Implement IGBT-based switching modules operating at 4–16 kHz for the inverter stage. Higher frequencies improve waveform quality but increase switching losses–balance this by using modules with <1µs dead-time and thermal sensors. Wire each transistor’s gate driver via optocouplers (e.g., HCPL-316J) to isolate logic signals, preventing noise from corrupting control pulses. Test insulation resistance between logic and power circuits–values below 10 MΩ indicate potential failure.

Use a PWM generator with a carrier frequency at least 10x the maximum output frequency to avoid aliasing. Popular controllers like the STM32F334 include onboard comparators for this purpose–configure them via firmware to modulate between 0–100% duty cycle in 256-step resolution. Calibrate the analog-to-digital converter (ADC) inputs for current sensing: shunt resistors sized at 50mΩ/15W provide adequate resolution without excessive heat dissipation.

Ground the system’s common reference point at a single location near the DC bus capacitors to prevent ground loops. Route power and control wires in separate conduits, spacing them ≥5cm apart. Shield signal cables with braided copper and terminate shields at one end only to block electromagnetic interference. Verify proper operation by measuring phase-to-phase voltages with an oscilloscope–symmetrical waveforms confirm balanced switching.

Key Components of a Tri-Power Supply Adjustable Drive Schematic

Install a three-contact choke between the converter’s DC bus and inverter output to suppress high-frequency harmonics. Use a 470μF electrolytic capacitor per kilowatt of rated load on the DC link–values below this risk voltage ripple exceeding 2%, leading to torque pulsations. Ensure the gate driver ICs (e.g., HCPL-316J) are isolated with 2.5 kV RMS optocouplers; bypass each with a 0.1μF ceramic capacitor to prevent false triggering under rapid dv/dt transients.

Wiring Layout for Optimal Thermal Management

Route the IGBT heatsink fins parallel to forced-air flow, maintaining ≥12mm clearance between adjacent modules to prevent thermal coupling. Ground the heatsink directly to the enclosure via a star-point connection to minimize EMI. Use 6 AWG stranded copper wire for DC bus bars–solid wire increases resistive losses by up to 5% at 50 Hz. Secure all connections with torque-controlled drivers: 12 Nm for M8 bolts, 25 Nm for M12 to prevent cold solder joints after thermal cycling.

Key Components of a Variable Speed Drive System for Tri-Asynchronous Machines

Start with a rectifier module rated 10–20% above the machine’s full-load current. Silicon-controlled rectifiers (SCRs) endure higher inrush spikes than diode bridges, making them preferable for loads exceeding 50 kW. Pair each SCR with a snubber (10 Ω, 0.1 µF) to suppress transient voltages above 1.5× the DC bus voltage.

Design the DC bus with electrolytic capacitors sized for 50–80 µF per kW. Use two capacitors in series for bus voltages above 600 V to halve ripple current stress. Install bleeder resistors (10 kΩ, 5 W) across each capacitor to ensure safe discharge within 10 minutes when power is removed. Aluminum electrolytics outperform film types in cost per farad but require derating for temperatures above 50°C.

The inverter stage demands insulated-gate bipolar transistors (IGBTs) matched to switching frequency. For 4 kHz operation, select IGBTs with collector-emitter saturation voltage ≤ 2 V at full load. Mount gate drivers on isolated heatsinks; maintain ≤ 3 °C/W thermal resistance to ambient. Opt for SiC MOSFETs if the application exceeds 15 kHz, yielding 30% lower switching losses than silicon.

Component	Silicon IGBT	SiC MOSFET
Switching frequency	≤ 20 kHz	≤ 100 kHz
Efficiency (90% load)	94%	97%
Junction temperature	125 °C	175 °C

Integrate a current transducer with ±1% accuracy across the full load range. Hall-effect sensors eliminate resistive losses inherent in shunt measurements. Position the sensor on the bus bar, 5 cm from the inverter module, to minimize stray inductance. Calibrate zero-crossing detection at startup to compensate for thermal drift.

The controller should execute closed-loop vector algorithms in ≤ 200 µs. Choose a processor with hardware FPU to reduce latency in PI regulator calculations. Allocate separate flash sectors for firmware and configuration data; encrypt sensitive tuning constants to prevent unauthorized access. Implement watchdog timers with 10 ms timeout to force a safe shutdown on processor faults.

Fit EMI filters rated for ≥ 2× line frequency. Common-mode chokes wound on nanocrystalline cores attenuate ≥ 40 dB at 1 MHz. Place X-capacitors (0.1 µF, 275 V) across each supply line and Y-capacitors (2.2 nF, 3 kV) to chassis ground to suppress differential noise. Route filter components ≤ 5 cm from the drive input terminals to avoid re-radiation.

Finalize with an enclosure ventilated but IP54-sealed. Fan filters rated for 5 µm particles extend lifetime in dusty environments. Position heatsinks vertically; forced convection doubles cooling efficiency over natural draft. Ground all metal casings to a single

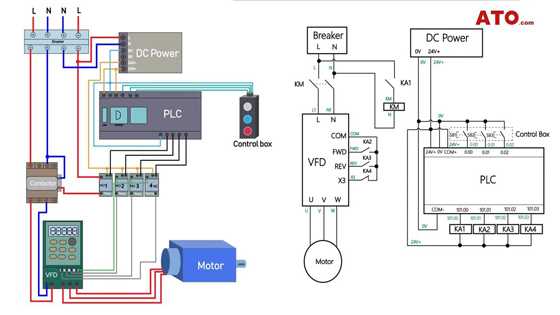

Step-by-Step Wiring Guide for a Three-Line Drive Unit Installation

Power down the supply at the main disconnect switch before handling any conductors to prevent hazardous arcing.

Identify the drive unit’s input terminals–typically labeled R/L1, S/L2, T/L3–and connect them directly to the corresponding output terminals of a fused or circuit-breaker-protected mains source rated for 400VAC, 50/60Hz. Use copper wire sized per NEC Table 310.16: 14 AWG for loads ≤15A, 10 AWG for ≤30A, and 6 AWG for ≤60A.

Connecting the Load

• Locate the U/T1, V/T2, W/T3 outputs on the frequency regulator.
• Route conductors from these points straight to the stator terminals of the rotary machine, maintaining identical labeling to avoid accidental swapping.
• Use shielded, twisted-pair cable for runs exceeding 10 m to suppress electrical noise; bond the shield solely at the drive end.

Ground the enclosure and rotary machine chassis through a separate, green-yellow conductor no thinner than 12 AWG, terminating into the drive’s dedicated grounding busbar or a listed ground rod with ≤25 Ω resistance to earth.

Control Wiring Essentials

1. Attach a 24VDC control source to the regulator’s +24V and COM terminals; verify polarity matches the relay or PLC specification.
2. Wire start/stop pushbuttons in series, ensuring the normally-open contact closes before the normally-closed contact breaks.
3. Route analog speed reference (0–10VDC or 4–20mA) to AI1 and AGND; calibrate the trimmer to 100% at maximum desired RPM.
4. If dynamic braking is required, connect the braking resistor across B+ and B– terminals with leads shielded and secured away from sensitive electronics.

After all conductors are secured, re-energize the mains, navigate to the drive’s parameter menu, and set acceleration/deceleration ramps (e.g., P0.05 = 3.0 s) to avoid nuisance overload trips. Execute a test cycle at 20% nominal speed, monitoring current draw with a clamp meter; expected values should be within ±10% of nameplate ratings.

Common Configuration Mistakes in Adjustable Speed Drive Schematics

Incorrect grounding layout is the most frequent error, causing EMI interference and premature component failure. Use a star grounding topology with the drive’s internal filter connected to a dedicated earth point–not the machine frame. Avoid daisy-chaining ground wires, as this creates loops that amplify noise. High-frequency filters should always reference the same central ground to prevent differential voltage spikes, measurable as 50-200 mV deviations at load terminals.

Parameter Oversights That Impact Performance

• Default ramp times ignored–acceleration/deceleration curves must match mechanical inertia (kg·m²) to prevent overcurrent trips. Test with a torque analyzer before finalizing values.
• Carrier frequency left unadjusted–values above 4 kHz increase losses and bearing currents. Reduce to 2-3 kHz for 15-50 HP units unless PWM harmonics require attenuation.
• Voltage reflection checks omitted–cable length exceeding 100 meters demands output reactors or dU/dt filters. Measure line-to-line waveforms with an oscilloscope: reflections >600 V/µs damage winding insulation.
• Thermal derating disregarded–ambient temperatures above 40°C require 1.5% power reduction per °C. Install RTDs if the enclosure lacks forced ventilation.

Control wiring routed alongside power cables induces crosstalk, falsely triggering faults. Keep signal wires (analog, digital, encoder) in shielded, twisted pairs, separated by at least 300 mm from high-current conductors. For 4-20 mA loops, use 24 AWG or thicker; thinner gauges drop voltage under 1 Ω/km line resistance, skewing feedback. Terminate shields at a single point–usually the drive chassis–to prevent ground loops. Verify shield continuity with a megohmmeter (>10 MΩ to earth) before energizing.
