Step-by-Step Guide to Designing a CCTV Surveillance Network Wiring Layout

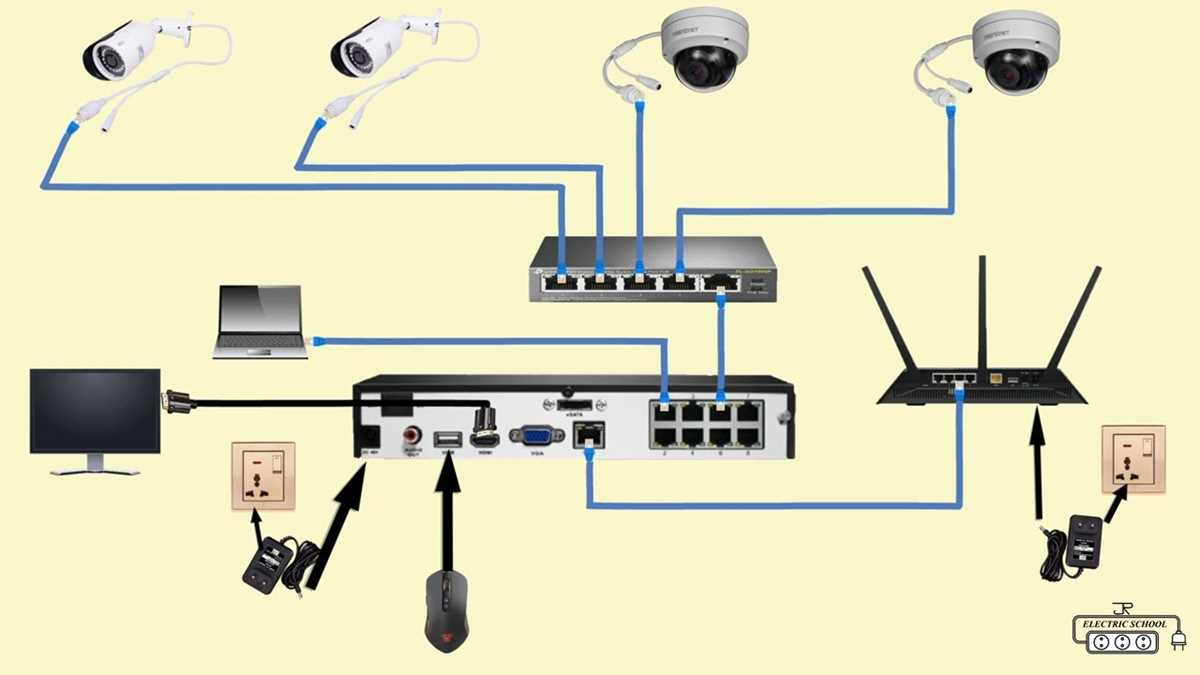

Start with a hub-and-spoke approach for camera clusters feeding into a central NVR (network video recorder). Allocate one 4K stream per camera using Cat6 S/FTP cables for runs under 100 meters; switch to single-mode fiber with SFP transceivers for distances exceeding that threshold. Assign static IP addresses in the 192.168.1.50–192.168.1.200 range to each endpoint and lock the MAC addresses on the PoE+ switch to prevent rogue device insertion.

Place the recorder on a dedicated VLAN isolated from office traffic. Use a Layer 3 managed switch with ACLs permitting only UDP ports 554 (RTSP) and 80 (HTTP) from authorized subnets. Configure spanning-tree portfast on edge ports to eliminate loop detection delays during initial power-up.

Mount the centralized UPS upstream of the switch and recorder, sized for 30 minutes runtime at full load. Ground each chassis to a common copper busbar bonded to the building’s electrical ground with 6 AWG copper conductors. Label every run with heat-shrink markers indicating camera location, MAC address, and PoE wattage budget.

In areas with intermittent power, pair each camera cluster with a local PoE splitter that injects 56V DC over the same Cat6 cable. Test voltage drop with a toner-probe before energizing; target under 3 % loss at the farthest camera. For outdoor enclosures, apply gel-filled RJ45 connectors certified for IP68 ingress protection.

Sketch the entire topology on a single DIN A1 sheet using standardized symbols: rectangles for recorders, triangles for switches, circles for cameras. Annotate each symbol with exact model numbers, firmware versions, and network segmentation rules. Cross-reference the drawing with a spreadsheet inventory listing every component’s serial, purchase date, and warranty expiration.

Key Elements of a Surveillance Network Blueprint

Start with a power distribution plan documenting voltage requirements per camera–most IP models need 12V DC or 48V PoE (IEEE 802.3af/at), while analog setups often rely on 24V AC adapters. Map each power source to its corresponding device with labeled cables, ensuring redundant paths for critical nodes. Include surge protectors rated 6kV minimum at entry points to prevent transient damage. For large installations, use a centralized UPS capable of sustaining operations for at least 30 minutes to allow orderly shutdown or switch to backup generators.

Signal Flow and Device Integration

Cable runs should never exceed 100 meters for twisted pair (Cat5e/6) or 500 meters for coaxial RG-59/U, with repeaters or switches placed strategically at midpoints if necessary. Splitters and baluns must maintain impedance matching–75 ohms for BNC connectors, 100 ohms for RJ45–to avoid signal reflection. Specify recorder resolution capabilities: NVR typically supports 4K at 8MP, while DVR maxes out at 1080p for analog inputs. Network switches require dedicated VLANs to isolate surveillance traffic, ideally with QoS priority over standard data streams to prevent latency spikes during peak loads.

Label every junction box, connector, and termination point with a standardized naming convention: *Site_Location-DeviceType-ID* (e.g., *WH-Ent-IP05*). Include a legend referencing cable colors, IP addresses, MAC IDs, and port assignments. For mixed environments, distinguish between ONVIF-compliant devices and proprietary protocols–some older PTZ cameras may require RS-485/RS-232 converters. Ground all shielding properly, bonding to a dedicated earth rod with resistance

Critical Elements for Surveillance Network Blueprints

Begin with precise camera placement markers, specifying mounting height (2.5–3.5m for standard models) and angular coverage (60°–110° for fixed lenses). Label detection zones with exact distances (e.g., 20m for 1080p resolution) and note obstructions like trees or walls that may degrade performance. Include power requirements (DC 12V/24V or PoE) and cable routes, ensuring separation from high-voltage lines (minimum 30cm clearance).

Integrate storage node details directly into the layout: NAS devices should show IP allocations, RAID configurations (RAID 5 for balanced redundancy), and estimated retention periods (e.g., 30 days for 4TB drives at 8 cameras/1080p). Specify compression formats (H.265 reduces bandwidth by 50% vs H.264) and streaming protocols (RTSP for real-time feeds). Add failover contingencies–backup power UPS specs (1500VA for 3 cameras) and redundant network paths with crossover cables.

Highlight control interfaces with vendor-specific protocols: ONVIF for standardized integration, proprietary APIs for advanced analytics (e.g., Hikvision’s line-crossing detection). Mark the physical location of the NVR/DVR, noting CPU/RAM requirements (Intel i5/16GB for 16-channel units). Indicate periphery devices–mic input jacks (2.5mm mono), alarm triggers (Dry Contact relays), and PTZ control ports (RS-485).

Document environmental factors affecting signal integrity: coaxial cable runs should not exceed 300m without repeaters; fiber optic trunks tolerate 10km+ but require SFP modules (1Gbps). Note temperature ranges (−20°C to +50°C for outdoor cameras) and IP ratings (IP66 for waterproof housings). Include grounding points (copper rods, 3m depth) to prevent electrical surges.

Embed QR codes linking to firmware updates or configuration guides for each component type. Use color-coded lines–red for power, blue for video, green for data–to avoid miswiring. Add a legend with abbreviations (e.g., “FOV: Field of View”) and regulatory compliance icons (e.g., GDPR for motion-triggered storage). For wireless setups, specify frequency bands (2.4GHz vs 5GHz) and interference sources (microwaves, cordless phones).

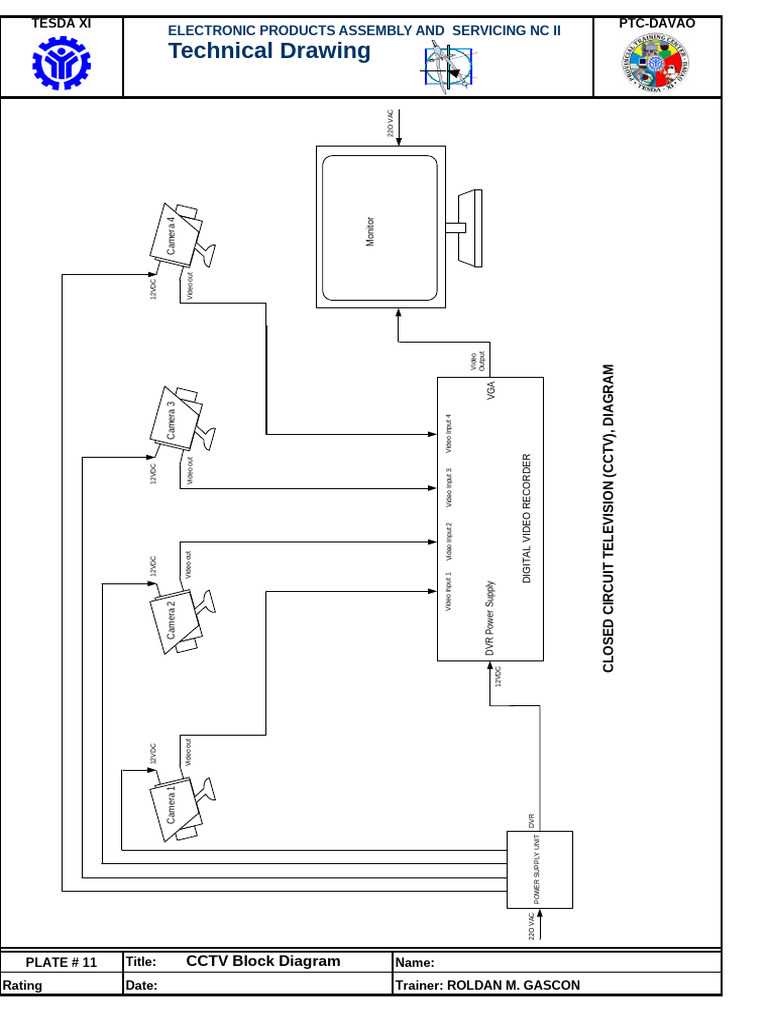

Step-by-Step Wiring Layout for Analog Surveillance Devices

Begin by selecting RG-59 Siamese cable with a solid copper core and at least 95% braided shielding for each camera connection. This type of coax ensures minimal signal degradation over distances up to 300 meters without requiring amplification. Measure the exact route from each camera to the recording hub, accounting for detours around obstacles, and cut cables with a 10% length buffer to avoid tension-related interference.

Strip each cable end carefully: remove 12mm of the outer jacket, expose 8mm of the braided shield, and trim the dielectric to reveal 3mm of the copper conductor. Tin the exposed shield and conductor immediately to prevent oxidation. Use BNC twist-on connectors for field installations–crimp-style connectors require specialized tools and offer only marginal signal improvements for analog setups.

Connect the power supply next. Each camera requires a stable 12V DC or 24V AC input, depending on the model. Run a separate 18 AWG two-conductor wire from a centralized power distribution box to each device. Calculate total power draw: a single 12V/2A unit consumes 24W, while a 12-camera array may need a 300W power supply with a 20% headroom for surges. Avoid daisy-chaining power wires–use individual runs to prevent voltage drops.

Grounding is non-negotiable to eliminate video hum. Attach the braided shield of each coax cable to a dedicated ground block at the recording hub, using 6 AWG bare copper wire leading to a proper earth ground (buried rod or building structural steel). For outdoor installations, add gas discharge tubes or TVS diodes at both ends of each cable to prevent lightning-induced spikes from frying the electronics.

Key connections at the recording hub:

• BNC inputs: Route all video feeds into a 16- or 32-channel DVR with analog BNC ports.
• Power terminals: Connect each camera’s power wire to the DC output block, labeling polarity (+/-) clearly.
• RS-485 wiring: If PTZ cameras are used, run a twisted pair (22 AWG) from the DVR’s PTZ control output to each camera’s data terminals (A+/B-). Terminate with a 120-ohm resistor if the total run exceeds 400 meters.

Test each connection sequentially using a portable video monitor. Verify power delivery (LED lights on cameras), signal clarity (no rolling lines or ghosting), and PTZ functionality if applicable. For long runs (200+ meters), add a video amplifier or switch to RG-6 coax with a thicker core (1.0mm vs. RG-59’s 0.64mm) to maintain image integrity. Document each cable’s route and purpose in a wiring diagram for future troubleshooting.

Configuring Digital IP Camera Networks in Visual Layouts

Begin by segmenting the network into logical zones based on camera density and operational requirements. Use a VLAN-based approach to isolate traffic: assign critical cameras to VLAN 100 (e.g., perimeter surveillance), moderate-priority devices to VLAN 101 (e.g., hallways), and low-priority feeds to VLAN 102 (e.g., storage rooms). Label each subnet explicitly on the layout with CIDR notation (e.g., 192.168.10.0/24) and mark PoE switches with their power budget (e.g., 30W per port). This prevents overload scenarios and ensures consistent bandwidth allocation.

Key Components to Annotate

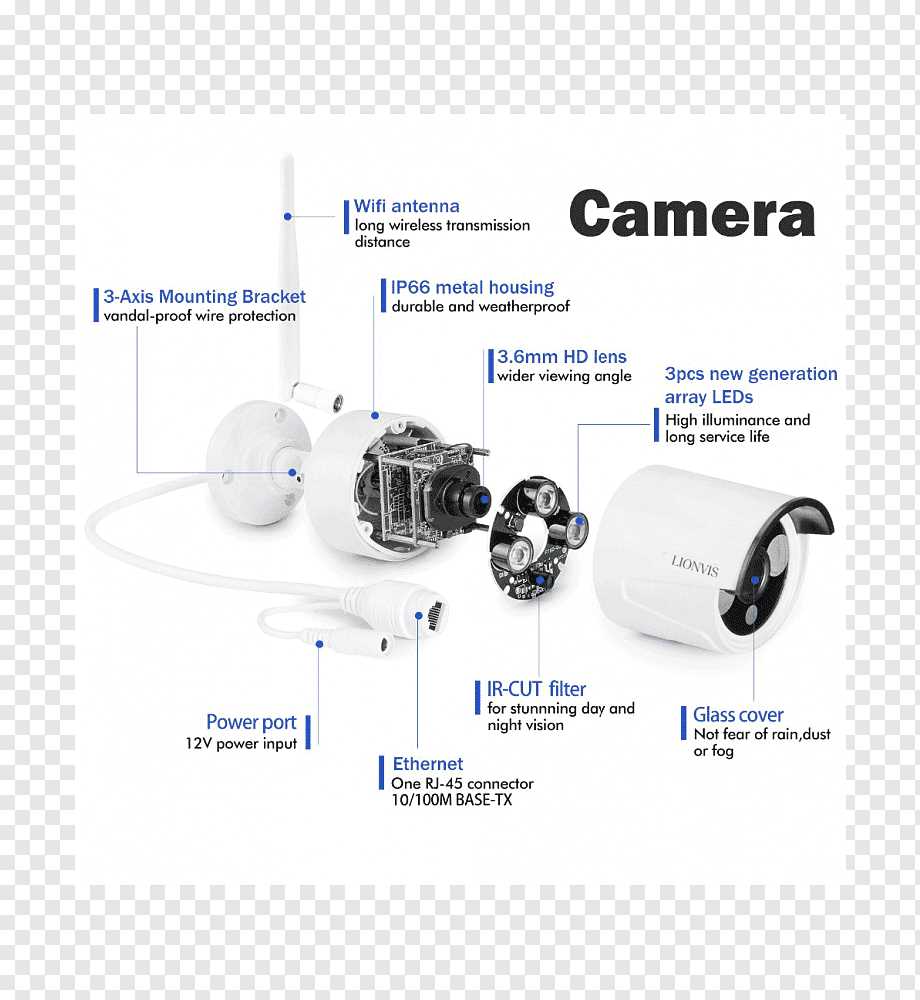

• IP Cameras: Specify model numbers (e.g., Axis P1468-LE), resolution (4K/8MP), and PoE class (Class 3/4). Include mounting height (3–5m for indoor, 6–10m for outdoor) and field of view angles (horizontal: 100°–120°).
• Network Infrastructure: Indicate switch types (L2/L3), port speeds (1G/2.5G/10G), and uplink capacities (e.g., 10G SFP+). Use symbols for fiber (orange lines) vs. copper (blue lines) to distinguish media types.
• Storage/NVR: Detail recording resolution (H.265 vs. H.264), compression ratios (e.g., 1:400 for H.265), and retention policies (e.g., 30 days @ 20Mbps/stream). Label storage arrays with RAID configurations (RAID 6 for redundancy) and capacity (e.g., 100TB usable).

Draw clear pathways for multicast traffic if using video management software (VMS) like Milestone XProtect. Place IGMP queriers at subnet boundaries to manage group memberships and prevent flooding. For failover, include dual NICs on critical cameras (active/passive) and redundant power supplies (e.g., Ubiquiti USW-Pro-24-POE). Mark all cable lengths–Cat6A for up to 100m, fiber for distances exceeding 100m–to comply with TIA/EIA standards.

1. Validate camera placement with a zone coverage map. Overlap fields of view by 20–30% to eliminate blind spots. Use tooltips on the layout to list:
   • Camera IP address (e.g., 192.168.10.11)
   • Default gateway (e.g., 192.168.10.1)
   • ONVIF profile (S or T) for compatibility
   • Audio support (G.711/G.726) if enabled
2. Avoid daisy-chaining more than 4 cameras per switch. Instead, deploy edge switches (Cisco SG220-26P) to aggregate traffic, limiting each switch to 24 ports with 80% utilization headroom.
3. Integrate QoS markers to prioritize:
   • Video streams (DSCP 46/EF)
   • PTZ control (DSCP 34/AF41)
   • Management traffic (DSCP 0/CS0)
