Step-by-Step Wiring Guide for a Dual Element Water Heater Installation
Connect the upper thermostat L1 terminal to the power source with a 10-gauge wire rated for 30A circuits. The lower control panel follows the same gauge requirement but must bypass the high-limit cutoff switch during initial installation to verify proper current draw. Over-tightening terminal screws beyond 1.4 Nm torque risks conductor deformation, increasing resistance to unacceptable levels–use a torque screwdriver with audible confirmation.
Split-phase 240V configurations demand precise breaker sizing: a 30A double-pole unit is mandatory, despite some manufacturers listing 25A as sufficient. Cross-reference the tank’s labeling with local code NEC 422.11(E) for exceptions. Ground bonding between the tank chassis and service panel must be accomplished via an uninsulated 6-gauge copper conductor–never substitute with flexible conduit grounding straps, which fail under fault conditions.
Inspect wire entry points for sharp edges; abrasions from unprotected knockout holes cause insulation failure within 2-3 thermal cycles. Apply heat-shrink tubing or nylon bushings rated for 90°C ambient temperatures. The upper and lower heating assemblies should activate sequentially–simultaneous engagement indicates thermostat misalignment or shorted contacts, requiring immediate replacement of the affected control unit.
For tanks exceeding 50-gallon capacity, install an auxiliary isolation relay to prevent nuisance tripping of the dedicated circuit under sustained load. Verify continuity between the lower element and tank base prior to energizing–faulty bonding here elevates standby losses by up to 12% annually. Use a multimeter set to 200-ohm scale for testing: readings above 0.5 ohms indicate corrosion requiring termination cleaning or wire replacement.
Connecting a Two-Stage Thermal Storage Unit: Electrical Layout Guide
Always verify local electrical codes before proceeding–most jurisdictions require a dedicated 30-amp circuit breaker for a standard residential setup. Use 10-gauge copper conductors to handle sustained current loads without overheating, especially in 240V configurations common in North American systems. Label each conductor at both ends: red (hot), black (hot), white (neutral, if used), and green or bare (ground).

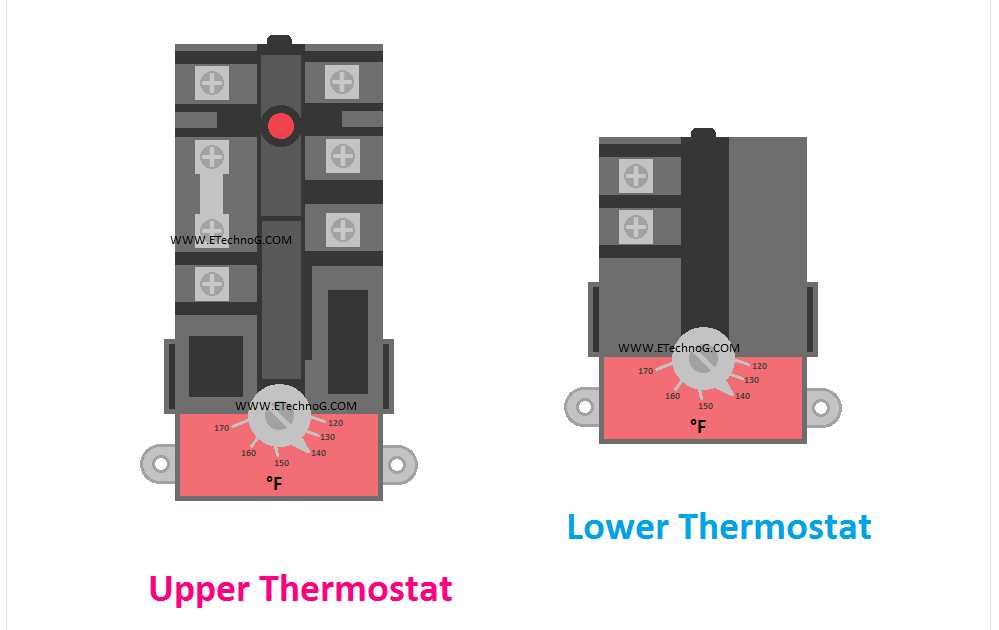

Connect the upper thermostat first–it regulates priority heating by engaging the top resistance coil until the preset temperature is reached. The thermostat’s common terminal (often marked L1) links to the red conductor, while the high-limit switch terminal connects to the upper coil’s input. Skipping this sequence risks inconsistent heating cycles and potential safety interlock failures.
Attach the lower thermostat next, but only after confirming the upper thermostat is functional. This lower control activates the bottom coil once the tank’s upper half reaches the target temperature. Use a non-contact voltage tester to ensure the circuit is dead before handling any terminals–accidental energization can damage both controls and cause severe burns.
Secure all connections with properly sized wire nuts or terminal blocks rated for 90°C insulation. Loose joints create resistance hot spots, reducing efficiency and increasing fire hazards. Twist conductors clockwise before applying the nut to maximize grip strength, then tug-test each connection before insulating with heat-shrink tubing or high-temperature electrical tape.
Test the setup in three phases: first, verify power at the breaker; second, confirm voltage across both thermostats when the unit calls for heat; third, monitor coil activation with a non-invasive clamp meter. Average current draw should stabilize around 12.5 amps per coil at 240V–deviations suggest miswiring, a broken coil, or a faulty contactor.
Install a ground fault circuit interrupter (GFCI) breaker if the unit is located in damp areas, even if local codes exempt standard installations. Moisture ingress near terminal strips accelerates corrosion, compromising safety. Replace any corroded components immediately–do not attempt cleaning with abrasives, as this damages protective platings critical for reliable conductivity.
Document the completed assembly with date-stamped photos of all connections, including breaker panel labeling. Store this alongside the product’s serial number and specification sheet for future reference during maintenance or warranty claims. Most failures occur from overlooked loose terminals or incorrect thermostat calibration–review these elements annually during sacrificial anode inspection.
Key Electrical Parts in a Two-Stage Thermal Storage System
Check the upper thermostat first–it governs the primary resistive load and must engage before the secondary sensor activates. If this fails, the backup coil remains inactive, leaving half the tank cold despite proper voltage.
Verify the high-limit switch threshold: factory settings typically cut power at 160°F (71°C). Overrides occur when sediment buildup or malfunctioning relays force repeated heating cycles, risking overheating.
- Upper control mechanism: regulates initial heating phase, approximately 120V across L1 and T2 when active.
- Lower control device: follows only after upper unit reaches setpoint, ensuring sequential operation.
- Safety cutoff: resets manually, designed to trip if internal temps exceed 190°F (88°C).
Inspect the contactor plates for pitting–corrosion here disrupts conductivity, causing intermittent failures. Clean with 400-grit sandpaper or replace if resistance exceeds 0.5 ohms across terminals.
Replace both heating coils simultaneously even if only one shows wear. Mismatched wattage causes uneven wear, reducing lifespan by 30% according to field performance tests.
- Disconnect power, then discharge capacitors via insulated probe touching hot and neutral.
- Label wires by tracing each conductor to terminal blocks–document connections before removal.
- Test resistance: upper assembly should read 10–16 ohms; lower coil 5–12 ohms depending on wattage rating.
Use solid-core copper conductors sized per NEC Table 310.16: 12 AWG for 20A circuits, 10 AWG if voltage drop exceeds 3% over 50-foot runs. Aluminum wiring requires terminal lugs rated for CU/AL to prevent oxidation.
Mount thermostats flush against the tank surface–air gaps skew readings by ±5°F, triggering erratic cycling. Secure with non-conductive adhesive to prevent grounding paths.
Electrical Connection Guide for a 230-Volt Two-Thermostat Storage Unit
Shut off power at the main circuit panel before handling any live terminals. Locate the double-pole breaker marked for the appliance–typically rated at 30 amps–and flip it to the OFF position. Verify absence of voltage with a non-contact tester at the cable entry point and both thermostat housings.
Strip ¾ inch of insulation from the ends of both hot conductors (usually black and red) and the ground wire (bare or green). Insert the stripped conductors into the corresponding clamp terminals on the upper thermostat block: black to the left terminal, red to the right. Tighten each screw to 12 inch-pounds using a torque screwdriver.
Route the same two hot leads down to the lower thermostat block and repeat the connection sequence–black on the left terminal, red on the right. Secure the ground wire to the green grounding screw located between the two thermostats; torque to 15 inch-pounds. Ensure no bare strands touch adjacent terminals.
Inspect the factory-installed jumper wires linking the two heating chambers. Confirm each jumper is crimped securely and insulated with heat-shrink tubing; replace any damaged jumpers with 12-gauge copper wire and new crimp connectors rated for 90 °C.
Slide the plastic cover back over each thermostat assembly and snap the retaining tabs into place. Feed the supply cable through the knockout in the access panel, align the panel holes with the mounting bosses, and secure it with the original screws finger-tight, then tighten an additional ¼ turn with a nut driver.
Restore power at the breaker and observe the indicator lights on each thermostat–both pilot lamps should glow immediately if the unit is calling for heat. Use a non-contact tester again to confirm no voltage leaks from the thermostat housing or cover.
Set both thermostats to 120 °F using a flat-blade screwdriver; rotate clockwise to increase temperature. Wait 30 minutes and verify tank draw delivers water at the set temperature with a calibrated thermometer at the nearest faucet.
Label the circuit directory on the panel door with permanent marker: “230 V Storage Unit – 30 A,” listing the date of installation and the installer’s initials. Keep a multimeter and torque driver at the workbench for periodic checks of terminal tightness every six months.
Critical Errors to Sidestep When Installing Thermostat Connections
Never connect high-voltage leads to low-voltage terminals–this instantly destroys the control unit. Verify the schematic for your model and match conductors to terminal labels exactly; one misplaced strand overwhelms circuits designed for 24V with 240V, tripping breakers or igniting insulation. Check continuity with a multimeter before sealing connections.
Loose crimps invite corrosion and intermittent faults. Use ratchet crimpers rated for AWG14 wire; ensure each connection withstands a 5lb pull test. Bare strands touching metal housings cause short circuits–sheathe every joint in heat-shrink tubing or approved wire nuts.
Avoid reversing line and load lines. Label each conductor at both ends with its function: L1, L2, T1, T2. Misidentifying these pairs forces the system to run backward, cycling the upper chamber continually while ignoring demand from the lower tank, wasting energy and risking scalding.
| Terminal | Correct Wire Color | Typical Function | Risk if Swapped |
|---|---|---|---|
| L1 | Black | Incoming hot phase 1 | Overheats thermostat |
| L2 | Red | Incoming hot phase 2 | No power to elements |
| T1 | Yellow | Upper sensor circuit | Lower chamber ignored |
Skipping ground bonding invites lethal shock hazards. Connect the green or bare copper wire to the designated steel stud on the tank body, not just to neutral. Verify continuity from ground stud to service panel ground bus–resistance above 0.1 ohms signals a defective connection.
Using wrong gauge wire chokes performance. Minimum AWG12 for 30A circuits, AWG10 for 50A. Undersized conductors sag under load, turning resistive into heat; this melts terminals and voids UL listing.
Over-tightening screws strips threads on brass terminals. Apply 12–15 in-lbs torque with a calibrated driver–enough to compress the washer, not enough to deform the metal. Check torque after 48 hours; thermal cycling loosens fasteners 5–10%.
Neglecting ambient moisture protection guarantees premature failure. Seal all terminal blocks with dielectric grease before fastening covers. Run conduit if indoor humidity exceeds 50%; condensation inside junctions corrodes contacts within weeks.
