How to Connect Wires in Your Orbit Sprinkler System Step by Step

Start by locating the power supply terminals–usually marked L (line), N (neutral), and G (ground) on the backplate. Use 14-gauge solid copper wire for connections rated for outdoor use with waterproof wire nuts. Strip 1/2 inch of insulation from each wire end, ensuring no exposed strands extend beyond the terminal clamp. Secure the line wire to a dedicated 20-amp circuit breaker; shared circuits risk tripped breakers during startup surges.

Warning: Skip the backfeed test at your peril. A multimeter set to AC voltage should read 110–120V between L and N and 0V between L and G. Reversing polarity fries low-voltage transformers instantly; double-check labels before tightening screws.

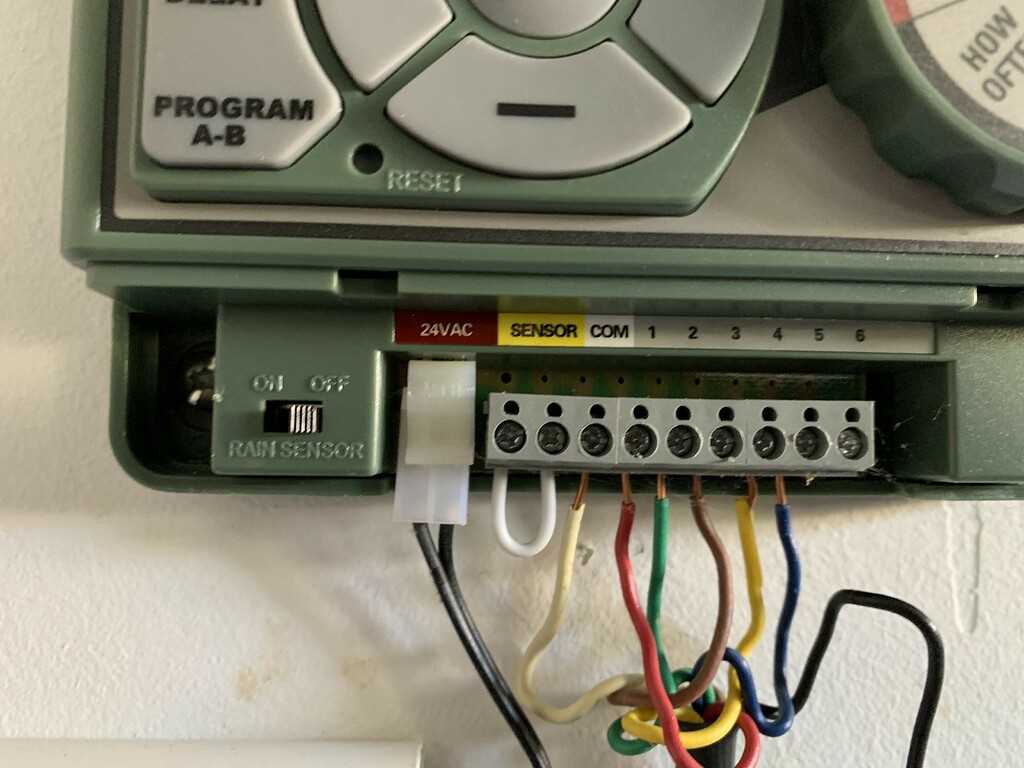

Route low-voltage cables through schedule-40 PVC conduit buried at least 6 inches deep–use fish tape to pull through curves without kinks. Color-coding matters: red for 24V common, blue/black/green/yellow for zone outputs. Keep runs under 500 feet to avoid voltage drop; above that, upsize to 12-gauge wire. Terminate at the controller with spade connectors crimped and soldered, not twisted.

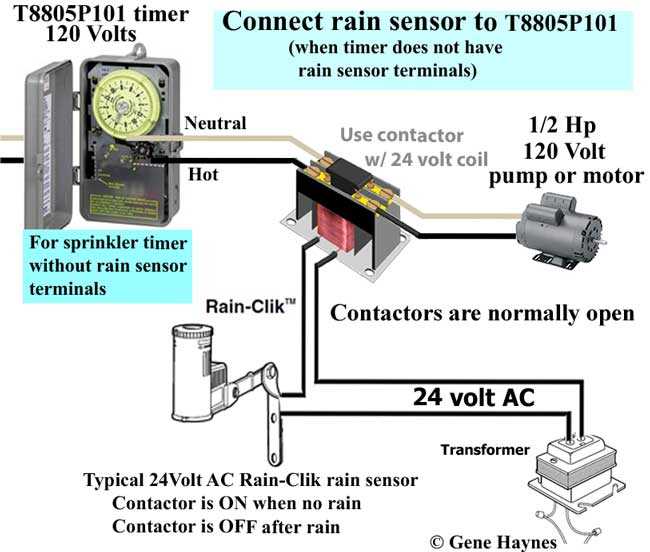

Attach sensors last: rain sensor wires tie into the P/MV terminals, freezing sensor needs its own breaker. Jumper the master valve terminal only if your valve solenoid requires 2-wire activation. Label every connection with weatherproof tags; corroded wires cause erratic zone firing within 18 months.

Final step: Energize the circuit, run each zone manually for 2 minutes, check for water hammer or relay chatter–both indicate loose connections or undersized wire. If voltage sags below 22V at the valve, reroute or shorten cable length.

Connecting Irrigation Controller Circuits: Key Steps

Ensure a 24VAC transformer supplies power directly to the solenoid valves via a dedicated common terminal–avoid daisy-chaining connections. Strip 0.5 inches of insulation from each wire and twist strands clockwise before securing under terminal screws; loose strands cause intermittent failures. Label both ends of every cable with zone numbers using heat-shrink tubing or permanent markers to prevent miswiring during maintenance. Route cables through 0.5-inch conduit where exposed to soil moisture, sealing entry points with silicone gel to block corrosion.

• Match wire gauge to distance: 18 AWG for runs under 150 feet, 16 AWG for 150-300 feet, and 14 AWG beyond 300 feet.
• Test continuity with a multimeter before system activation–resistance should not exceed 20 ohms per 50 feet.
• Use waterproof wire nuts for splices, coating each connection with dielectric grease to repel water ingress.
• Ground the controller chassis to a copper rod driven 8 feet into undisturbed soil, bonding with a 6 AWG bare wire.

Determining Conductor Roles in Automatic Irrigation Setups

Examine the color coding on each conductor–typically, red or black wires supply power from the controller to the solenoid valves, while white or green wires serve as neutral or grounding connections. Use a multimeter set to DC voltage (24V range) to verify: activate a zone at the control panel and measure voltage between the suspected power wire and ground; consistent readings (22-28V) confirm correct identification. Label each conductor immediately with waterproof tags to prevent mix-ups during reinstallation.

For older installations lacking clear color standards, trace the conductor path physically–follow each wire from the valve back to the controller terminal, marking intermediates with masking tape until reaching the source. Avoid relying on visual inspection alone; corroded or spliced wires may appear intact but fail electrically. Replace undamaged but unclear wires with standard-colored replacements (e.g., red for power, white for neutral) to simplify future servicing.

Precision Guide to Linking Irrigation Control Units

Disconnect the primary power feed at the breaker before handling any terminal blocks. Use a multimeter set to 20V AC to verify zero voltage across the incoming leads. Label each conductor with masking tape–color-coded for input (typically black or red) and grounded neutral (white)–to prevent misalignment during reconnection.

Attach the primary conductors first: loop the live cable clockwise around the main lug and tighten the screw until snug; repeat for the neutral. Apply moderate torque–over-tightening can strip threads, while under-tightening risks arcing. Check tension by gently tugging each wire; it should resist without slipping.

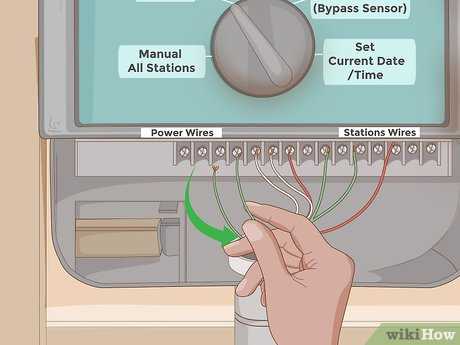

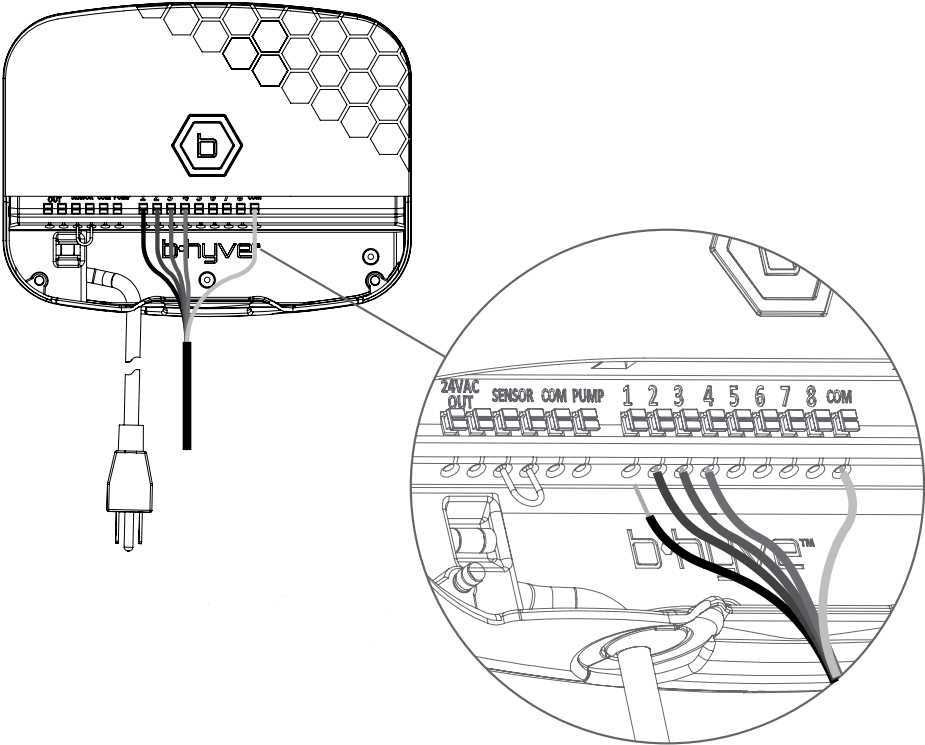

Route each solenoid cable through the controller’s grommet, ensuring no sharp edges contact insulation. Strip ¼ inch of sheathing from each conductor, twist strands lightly, and insert into the corresponding zone terminal. Secure all screws evenly; uneven pressure can cause intermittent faults during runtime.

Bridge any common terminals if the unit requires shared voltage–most modular panels use a single bus bar. Verify bridging with a continuity tester before energizing. Avoid cross-threading screws; damaged threads lead to inconsistent signals.

Mount transformers directly onto the chassis plate with the provided screws, aligning tab slots precisely. Misalignment can cause misfires during scheduled cycles. Secure ground wires to the chassis grounding post using a ring terminal–bare copper strands increase resistance and degrade performance.

Reconnect power at the breaker, then activate each zone sequentially from the control interface. Monitor the display for error codes; flickering digits indicate loose connections. Adjust torque on any suspect terminals before finalizing the setup.

Common Mistakes When Connecting Irrigation Solenoids

Reversing the solenoid wires is a frequent error. Polarity matters–swap them, and the actuator won’t respond. Test with a multimeter before securing connections to confirm voltage direction matches the manufacturer’s label. Even a single misaligned terminal can prevent the mechanism from opening.

Skipping the solenoid resistance check leads to undetected failures. Most actuators require 20-60 ohms. Values outside this range indicate a burned coil or broken circuit. Measure resistance at the valve box, not the controller, to isolate the issue before assuming wiring faults.

Over-tightening wire nuts strips small-gauge conductors, especially in 18-20 AWG cables. Twist strands gently, then apply nuts with thumb pressure–no pliers. Inspect for exposed copper; tape individual splices if dust caps loosen.

Buried splices without waterproof connectors corrode within months. Heat-shrink tubing with adhesive lining outperforms electrical tape in damp environments. Apply silicone-filled wire nuts for underground joints, ensuring a moisture-sealed barrier.

Controller-Specific Pitfalls

Assuming every timer outputs 24 VAC leads to compatibility mismatches. Some European models deliver 12 VDC; forcing AC into a DC solenoid burns the coil instantly. Verify voltage specs in the installer manual, not just the product description.

Improper zone numbering causes cross-circuit activation. Trace wires from the controller to the valve box, labeling each wire terminus. Swap controller terminals if Zone 1 triggers Zone 3–mislabeling wastes hours of troubleshooting.

Neglecting AC hum testing masks intermittent connections. Stand beside the timer box and listen–audible buzzing confirms current flow; silent circuits often hide corroded contacts or stripped wire ends. A non-contact voltage pen validates live wires without exposure.

Failing to cycle valves manually skips critical pressure checks. Each actuator should hiss briefly when powered; continuous leaking suggests debris or a faulty diaphragm, not wiring errors. Clean or replace internal components before rewiring suspect circuits.

Diagnosing Electrical Issues in Irrigation Control Systems

Check the voltage at the controller terminals using a multimeter. Set it to AC mode and probe between the common terminal and each station output while activating the zone. A reading below 22V AC suggests a transformer fault or damaged internal connections; replace the power supply unit if necessary. If voltage measures correctly but the solenoid fails to respond, proceed to inspect the field cable.

Inspect cable splices for corrosion or moisture ingress by separating the wire nuts and examining the copper strands. Greenish oxidation on wires indicates prolonged exposure to moisture–strip back the insulation 1 cm, clean with emery cloth, and re-splice using watertight connectors. For buried cables, use a tone generator to trace breaks: connect it to one end of the suspect wire and follow the signal path with a probe until the tone cuts out, pinpointing the fault location.

Symptom	Likely Cause	Recommended Action
Zone activates but spurts weakly	Partial cable break or corroded splice	Excavate and repair affected section
Controller powers on but no zones respond	Blown fuse or faulty circuit board	Test fuse continuity; replace board if traces show burn marks
Erratic zone behavior	Short circuit from damaged insulation	Replace cable segment between controller and valve

Test solenoid coils by disconnecting the field wires and measuring resistance across the terminals. A healthy coil reads 20–60 ohms; zero or infinite resistance confirms a shorted or open coil–replace the actuator. For systems using DC latching valves, verify the controller sends a pulse by observing a brief voltage spike (typically 24–36V DC) when initiating the zone; absence of this pulse suggests a failed control module requiring replacement.
