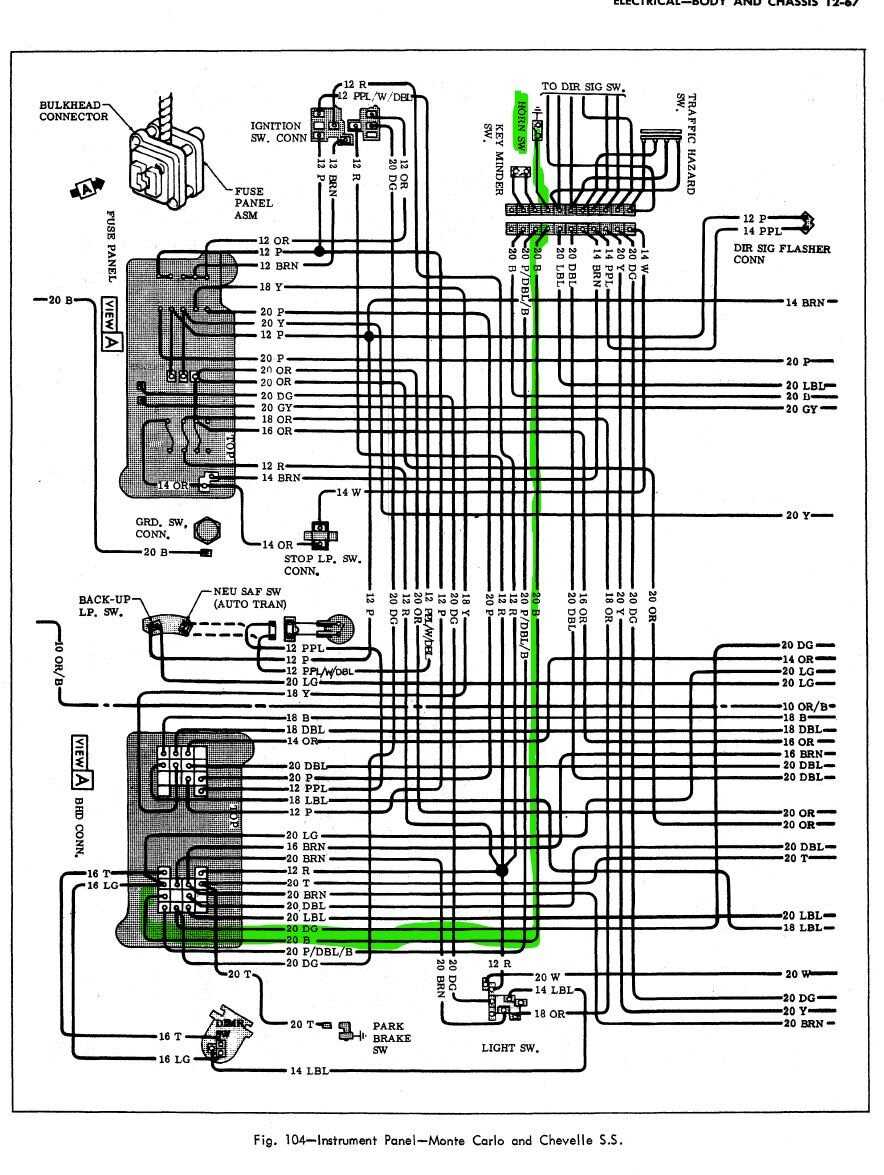

How to Read and Use a Vehicle Horn Wiring Diagram Step by Step Guide
Connect the horn circuit directly to the vehicle’s 12V power source, bypassing the ignition switch if instantaneous response is critical. Use a 15-amp fuse between the battery and relay to prevent overload–standard automotive fuses rated at 10 amps may fail under sustained current. Attach the relay coil to a momentary switch or the factory horn button, ensuring the trigger wire runs through a 20-22 AWG conductor to minimize voltage drop. Ground the relay and horn body to a clean, unpainted chassis point; rust or corrosion at this junction will degrade performance.
Select a relay with a 30/40-amp contact rating–lower-capacity relays risk welded contacts under repeated activation. For dual-tone systems, wire the second horn in parallel but isolate each unit with its own relay if current draw exceeds 15 amps. Avoid sharing grounds with auxiliary lighting or audio equipment; induced noise can cause intermittent operation. Test continuity across all connections with a multimeter before finalizing–resistance above 0.5 ohms indicates poor conductivity.
For heavy-duty applications, substitute the factory wiring harness with 12-gauge silicone-jacketed cables; PVC insulation degrades at sustained temperatures above 80°C. Route wires away from exhaust manifolds and moving components, securing them with nylon ties every 15 cm. If using a pre-assembled harness, verify it includes suppression capacitors across the relay coil–electrical noise can trigger false activation of adjacent modules like ABS or traction control.
Mount the horn behind the front bumper, angled slightly downward to direct sound toward the road surface–this enhances audibility without increasing db output. Check local regulations: some jurisdictions limit audible signals to 105 db at 3 meters. For off-road vehicles, add a lockout toggle switch to disable the circuit when operating near noise-sensitive areas. Replace the relay every 50,000 activations or if erratic clicking occurs–failure symptoms include delayed response or continuous engagement.

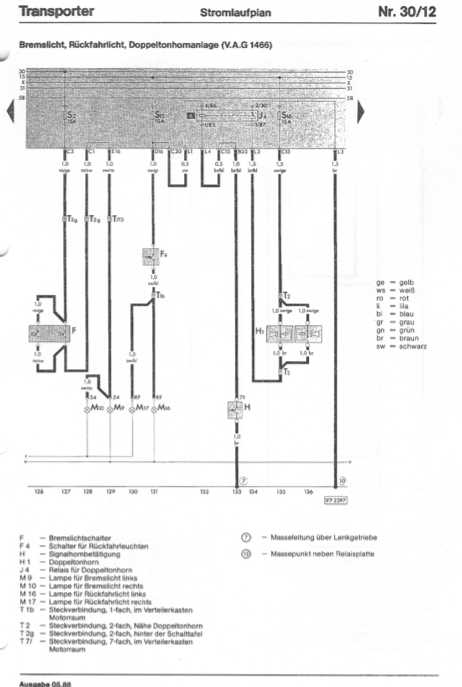

Electrical Schematic for Vehicle Audible Alert Systems
Start by identifying the relay switch–usually a 4- or 5-pin relay positioned near the vehicle’s fuse box. Locate pin 85 (control coil ground) and 86 (coil power) for triggering; incorrect routing here causes silent failures. Verify relay compatibility: 12V systems demand relays rated for 30A minimum, 40A for heavy-duty applications.
Power Source Connections
Route the main power feed directly from the battery’s positive terminal. Avoid tapping into accessory circuits–voltage drop under load will weaken alert volume. Use 10-gauge wire (red or yellow insulation) for standard horns; upgrade to 8-gauge for dual-tone setups. Secure connections with tinned copper crimp splices; solder adds corrosion resistance.
- Battery → fuse holder (20A blade-type) → relay pin 30
- Relay pin 87 → horn positive terminal
- Horn ground → chassis or dedicated grounding block
Signal Trigger Path
Activate the control circuit via the steering column stalk or dashboard button. Trace the existing wiring harness for a switched 12V line (typically light blue or green striped wire) leading to the relay’s pin 86. If absent, install a dedicated switch–and wire it through a 10A fuse to prevent short-circuit damage.
Ground pin 85 to a clean chassis point. Paint-free steel, star washers, and dielectric grease ensure long-term conductivity. Test continuity with a multimeter before finalizing–resistance above 1 ohm suggests poor grounding, requiring surface cleaning or relocation.
- Steering stalk/button → 10A fuse → relay pin 86
- Relay pin 85 → chassis ground
- Confirm 12V at pin 86 when stalk is pressed
Install the audible device between the relay’s pin 87 and a dedicated ground. Dual-system setups require a second relay; parallel wiring risks uneven tone or overloading the original feed. Match polarity–the device’s positive terminal connects to pin 87, ground to chassis. Use spade terminals and heat-shrink tubing for strain relief.
Final checks: Press the stalk while observing relay engagement. A distinct click confirms coil activation; absence signals a broken trigger circuit. Measure voltage at the device’s terminal–11.8V minimum under load. Lower readings indicate undersized wire or corroded splices–replace segments if necessary.
Locating Critical Elements in an Automotive Audible Signal Circuit
Begin by tracing the relay–typically a compact, cube-shaped component marked with terminal labels (85, 86, 87, 30). Terminal 85 connects to the activation switch, while 86 grounds the relay coil. Terminal 30 receives direct battery power, and 87 routes current to the signal itself once the coil energizes. Verify relay functionality by swapping it with a known-good unit if the circuit fails to trigger.
Check the signal button next: Modern steering-column stalks integrate momentary contacts that bridge 12V to the relay trigger. Remove the column shroud to access the switch backside; probe for continuity between the input and output pins while pressing the lever. Corrosion or worn contacts often require cleaning with electrical contact spray or replacement–avoid sandpaper, which can damage thin plating.
Inspect the audible device–usually a dual-tone setup with separate high- and low-frequency units mounted behind the grille or bumper. Each draws ~5A; confirm resistance (typically 1.5–3 ohms) across terminals. High-current leads should terminate in heat-shrink-insulated crimp connectors, not solder alone. Replace frayed or melted wires with 14–16 AWG tinned copper wire, ensuring polarity matches factory markings–reversed polarity can destroy the coil windings.
Step-by-Step Guide to Linking an Acoustic Signal Relay Directly to Power Source
Locate the vehicle’s main power terminal–typically a thick red cable attached to the positive battery post. Verify it’s free of corrosion or fraying. Use a multimeter to confirm at least 12V DC before proceeding.
Cut a length of 10-gauge red wire, ensuring it reaches from the battery’s positive terminal to the relay’s input (usually terminal 30). Strip 6mm of insulation from both ends. Crimp a ring terminal onto one end and secure it directly to the battery post with a stainless-steel bolt, applying dielectric grease underneath.
Identify the relay’s coil terminals (typically 85 and 86). Connect terminal 85 to the horn button via a 16-gauge wire. Route this wire through the steering column or firewall using grommets to prevent chafing. Terminal 86 must attach to a grounded metal chassis point–avoid painted surfaces.
| Relay Terminal | Wire Gauge | Connection Point | Notes |
|---|---|---|---|
| 30 | 10 GA | Battery positive | Fuse within 15cm |
| 87 | 10 GA | Signal device output | Heavy-duty connector |
| 85 | 16 GA | Switch side | Loom-wrapped |
| 86 | 16 GA | Chassis ground | Nylon washers beneath |
Fuse the 10-gauge feed wire within 15cm of the battery terminal. Use a 20A blade fuse. Without this, a short circuit could melt the wire insulation in under 3 seconds, creating a fire hazard.
Link relay terminal 87 to the signal device using another 10-gauge wire. Terminate with a spade connector at the horn’s positive lug. Ensure this connection is tight–vibration can loosen it over time.
Test the circuit by pressing the horn button. If silence persists, use a test light on relay terminals 30 and 86. The light should illuminate when key is on (for switched circuits) or immediately (for direct battery feed). If terminal 30 lacks voltage, recheck the fuse and battery connection.
Secure all wires with zip ties every 15cm along rigid structures. Avoid routing near sharp edges, exhaust manifolds, or moving parts. Label both sides of crimp connectors with heat-shrink tubing for future troubleshooting.
Finish by coating all exposed metal terminals with terminal protectant spray–this prevents oxidation in humid or salty environments. Recheck torque specifications on battery clamps annually, as loose connections cause voltage drops that degrade signal performance.
Frequent Errors in Vehicle Audible Signal Installation and Prevention Techniques
Skipping the fuse insertion between the power source and the signal device leads to direct short circuits. Always install a fuse rated 10-15 amperes within 7 inches of the battery terminal. Use a slow-blow type if the circuit includes inductive loads like relays.
Incorrect wire gauge selection causes voltage drop and weak sound output. For a standard 12V automotive setup, use 16 AWG for runs under 10 feet and 14 AWG for distances up to 20 feet. Measure actual voltage at the signal device terminals – values below 11.5V indicate inadequate conductor size.
- Connecting the ground wire to painted surfaces results in intermittent operation. Scrape off paint and attach directly to bare metal using a star washer for optimal contact.
- Pairing incompatible relay contacts with high-current devices damages the switching mechanism. Use relays with contacts rated 30A or higher for aftermarket signal devices exceeding 5A draw.
- Taping wire connections instead of using solder or crimped terminals invites corrosion. Apply dielectric grease to crimp connectors before installation in exposed locations.
Mounting the sound emitter near heat sources reduces longevity. Maintain at least 6 inches clearance from exhaust manifolds and engine blocks. Use insulated mounting brackets for devices positioned in high-temperature engine compartments.
