Complete Chevy 350 Alternator Wiring Diagram Guide for Beginners and Pros
Begin by identifying the battery-positive terminal on the voltage regulator–this is your primary power feed. Connect an 8-gauge insulated cable directly from this point to the battery’s positive post, ensuring minimal resistance and secure crimping with heat-shrink tubing to prevent corrosion. Ignore any pre-existing “idiot light” circuits unless your model retains an analog ammeter, which requires separate handling for accurate current measurement.
Locate the field terminal on the rear housing; this is typically marked “F” or “R”. Route a dedicated 10-gauge wire from this terminal to the ignition switch’s “ACC” or “RUN” position, incorporating an inline fuse rated at 10 amps within 6 inches of the switch to protect the exciter circuit. Avoid splicing this lead into accessory circuits, as voltage drops under load–especially from high-drain devices like heated seats or auxiliary lighting–will cause erratic charging behavior.
The case ground serves a dual role: structural anchoring and electrical return. Clean the mounting surface with a wire brush to bare metal, then apply dielectric grease before torquing the mounting bolts to 18–22 ft-lbs. Verify continuity between the alternator housing and the engine block with a multimeter; readings above 0.2 ohms indicate a compromised ground requiring additional star washers or a secondary 4-gauge braided strap to the negative battery terminal.
For late-model vehicles with computer-controlled charging, integrate an ECU sense wire. Connect a 14-gauge lead from the alternator’s “S” terminal to the battery-positive post via the same fuse block serving the ignition circuit. This loop provides real-time voltage feedback to the ECM, preventing false fault codes and enabling adaptive load management. Omit this connection only if the system relies on a dedicated voltage sensor at the battery.
Test the installation by monitoring voltage at the battery posts under three conditions: idle (1,200 RPM), cruising (2,500 RPM), and high load (accessory engagement). Target readings are 13.8–14.4V; deviations below 13.5V at idle suggest excessive resistance in the positive feed, while voltages exceeding 14.8V indicate a faulty voltage regulator or improper battery type (AGM systems require lower thresholds).
Electrical Hookup Guide for GM’s 5.7L Power Generation System

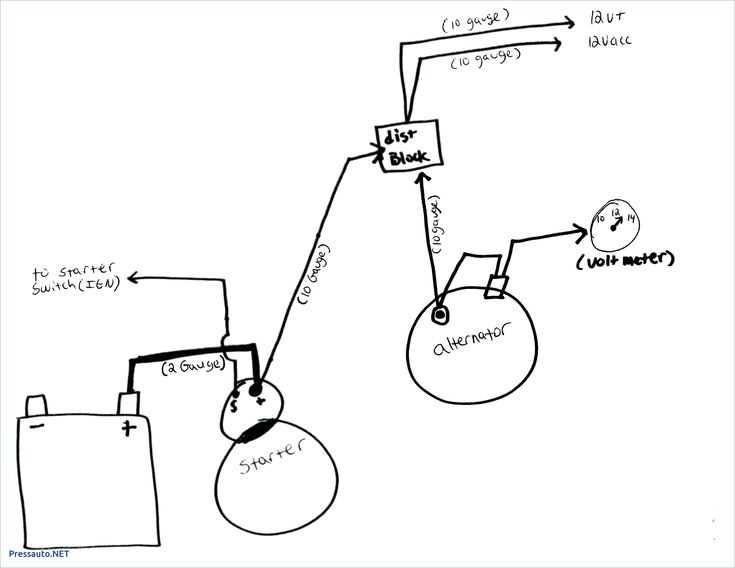

Connect the charging unit’s primary output post to the battery’s positive terminal using 8-gauge or thicker cable, ensuring minimal resistance. The negative return should bond directly to the engine block near the mounting bracket–avoid grounding through sheet metal. Use a 10-gauge fusible link between the alternator’s battery stud and the starter solenoid to prevent overcurrent damage.
- Identify the voltage regulator plug: GM’s one-wire setup requires only the main output hooked to the battery; all other terminals self-excite above 1,200 RPM.
- For externally regulated setups, pin “R” receives switched ignition voltage (12V) via a 5-amp fuse, while pin “F” connects to the voltage regulator’s field terminal.
- Verify excitation with a multimeter: a healthy unit shows 13.8–14.5V at idle on a 12.6V battery; deviations below 13.5V indicate weak diodes or worn brushes.
Common Hookup Pitfalls and Fixes
- Incorrect gauge sizing causes voltage drop: measure resistance across the charging path–ideal ≤0.2 ohms.
- Loose engine grounds mimic alternator failure; sand paint off contact surfaces for
- Reverse polarity destroys the rectifier bridge instantly; mark cables clearly before disconnecting.
- Over-tightened mounting bolts crack internal brackets–torque to 28–36 ft-lbs only.
Post-install, load-test at 2,000 RPM with high-beam and blower fan engaged: voltage must hold steady ≥13.5V. Drop below 12.8V signals impending diode failure–replace the rectifier plate immediately to prevent catastrophic battery drain.

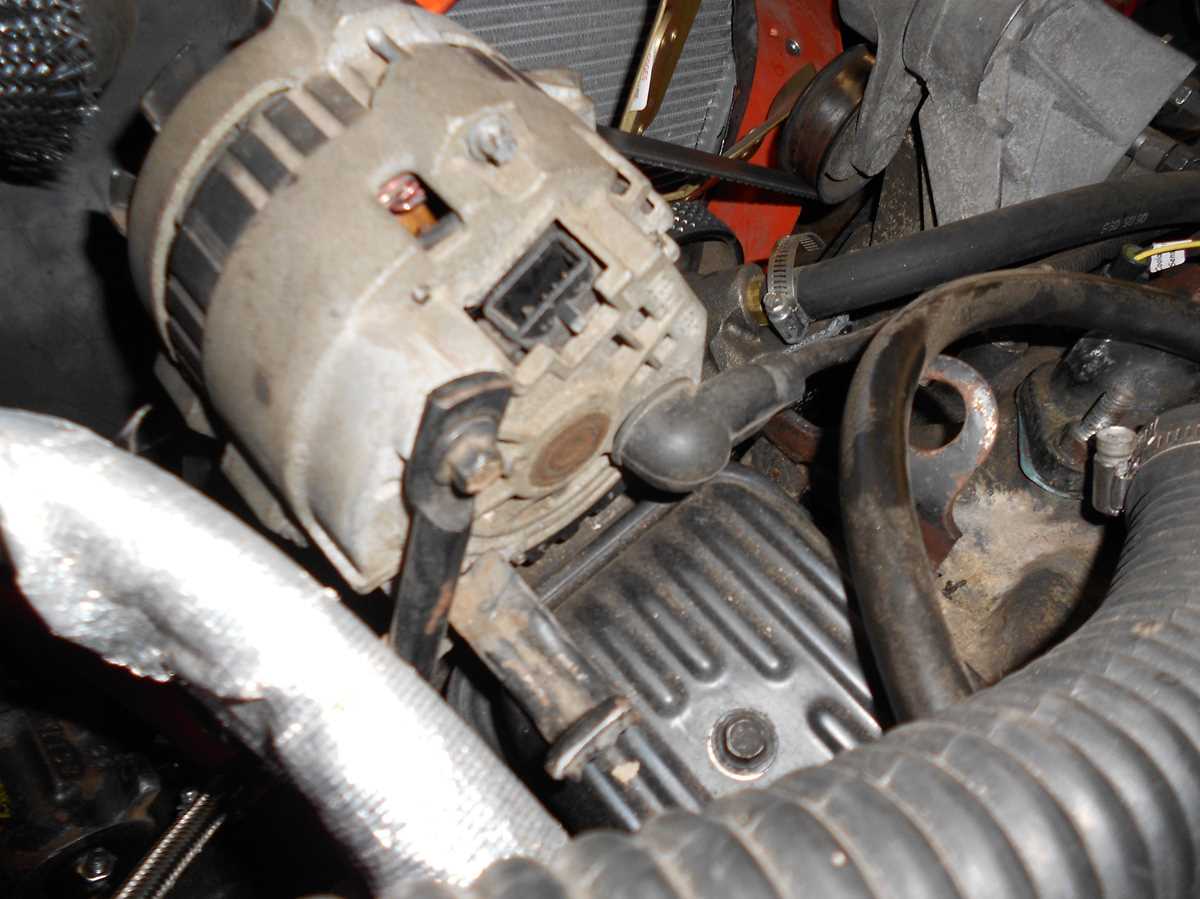

How to Select the Right Electrical Connector for GM’s Small-Block Power Unit

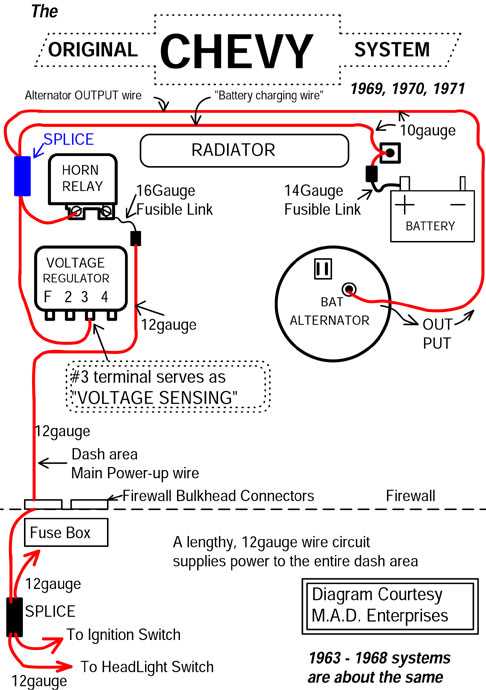

Begin by matching the harness pin configuration to the generator’s voltage regulator type. Stock Delco-Remy setups with internal regulation (common in late-’70s and newer engines) use a three-terminal plug: battery positive, ignition/excitation, and ground. Earlier external-voltage models require a four-wire assembly–add a sensing line that taps into the fuse block or main power bus. Verify the connector gender and keyway orientation before purchase; GM’s factory plug uses an asymmetrical tab arrangement that prevents incorrect insertion.
Check the wire gauge and insulation material. OEM-style harnesses for the 5.7L V8 employ 10-gauge primary leads for current delivery, while aftermarket kits often downgrade to 12-gauge–risking voltage drop under heavy loads (above 60A). Silicone-jacketed cable outperforms PVC under heat soak; look for strands tinned with copper to resist corrosion in humid climates. Terminal ends should crimp securely without solder, which embrittles under vibration.
Compatibility Cues Across Vehicle Applications
Full-size trucks and Caprice/Impala models share identical pigtail designs, but trucks often integrate an extra relay trigger for trailer brake controllers–ensure spade connectors align with those on the charging unit’s rear housing. Camaro and Corvette variants may splice in an oil-pressure sender or dash-light circuit; trace each wire back to the fuse diagram for that specific chassis code (e.g., LM1, L69) to avoid misrouting.
Adapters exist for GM-to-Ford or aftermarket alternators (e.g., CS-130, CS-144), but require re-pinning the connector. Compare the terminal map: GM’s “Bat” post matches Ford’s “A+”, while GM’s “F” (field/excite) corresponds to Ford’s “I” terminal. Swap wire colors if necessary–stock Delco uses yellow for excitation, whereas aftermarket brands often substitute red or blue.
Label each lead before disconnecting the old assembly. Snap a photo of the backside where the cables exit the case; some variants have a hidden 30A fusible link piggybacked onto the main battery feed, critical for overcurrent protection. Replace corroded ring terminals with heat-shrink types that seal against moisture; pre-strip 0.25″ of insulation and twist strands before crimping to maintain low resistance.
Verification Steps Before Final Installation
Measure continuity between harness pins and the unit’s studs with a multimeter set to 200Ω. Probe from the ignition/excite terminal to the small threaded post inside the rear bearing retainer–resistance should read between 1.5-3Ω on a healthy field coil. Absence of continuity indicates a broken internal brush or faulty rotor; excessive resistance (>5Ω) signals corroded slip rings.
Step-by-Step Guide to Hooking Up the Generator Output Lead
Locate the battery positive terminal–it’s the primary power source for the charging system. Strip ¼ inch of insulation from the end of the heavy-gauge cable (minimum 10 AWG) that carries current from the voltage regulator’s “BAT” stud. Secure this cable to the battery post using a ring terminal crimped and soldered for a vibration-proof connection; torque the nut to 12 ft-lbs. Route the cable away from moving parts–the fan belt, pulleys, and exhaust manifold–to prevent abrasion. If the OEM harness lacks a fusible link, splice in a 100-amp fuse inline within 7 inches of the battery to protect against shorts.
- Attach the same cable’s opposite end to the regulator’s output stud–marked “BAT” or “B+”–using a second ring terminal; tighten to 8 ft-lbs.
- Ground the regulator housing by bolting it directly to the engine block; scrape off paint and debris for bare-metal contact.
- Verify voltage at the battery with the engine off (12.6V) and at 2000 RPM (13.8–14.5V). Readings outside this range signal regulator or diode failure.
- Start the engine, then momentarily disconnect the battery positive cable; if the engine dies, the stator is not energizing the system–replace the unit.
Voltage Regulator Function in GM’s Small-Block Charging System
Fit the regulator downstream of the battery terminal on the generator’s output lead–pin B on the SI-series unit–using 10-gauge wire with a minimum 30 A fuse within 7 inches of the connection. This placement ensures the regulator senses true system voltage, not charging spikes. GM’s three-wire SI regulator (usually marked “12SI” or “10SI”) cycles the field coil via an internal transistor that opens at ≈14.2 V ±0.2 V; exceeding 0.3 V deviation trips the over-voltage relay inside the housing. Keep the sense lead (pin S) isolated from accessory circuits; a shared bus bar causes inconsistent Exciter On thresholds.
| Component | Pin ID | Wire Gauge (Min.) | Max Resistance | Notes |
|---|---|---|---|---|
| Field coil + | F | 14 | 0.5 Ω | Splice to ignition run terminal, not starter solenoid |
| Battery sense | B | 10 | 0.2 Ω | Fusible link mandatory |
| Voltage sense | S | 18 | 2 Ω | Direct to battery post, no accessory taps |
Clean ground pathways through engine block return straps–regulator housing itself must tie to the battery negative post with 8-gauge braid. Corrosion on the mounting bolt increases field coil resistance above 0.7 Ω, triggering false Exciter Off cycles. Replace the regulator if the ignition warning lamp flickers at idle with no parasitic loads detected; SI units have no manual voltage adjust–the 14.2 V setpoint is factory sealed with epoxy.
Resolving Electrical Faults in GM Small-Block Charging Systems
Check the voltage regulator output at the battery terminals with the engine idling–readings below 13.0V indicate insufficient charging. Probe the exciter lead (often a thin red or brown wire) while cranking; if voltage drops below 9.0V, the circuit may have high resistance or a faulty ignition switch connection.
Inspect the fusible link between the starter solenoid and the main power distribution block. A melted or brittle link disrupts current flow, often mimicking a dead battery. Replace with the same gauge copper strand (typically 10 or 12 AWG) and secure with soldered splices, not crimp connectors.
Test diode trio integrity by disconnecting the field coil plug and measuring AC voltage at the stator output. Readings above 0.5V AC suggest diode breakdown, requiring stator replacement. If DC voltage checks normal, examine the ground strap connection at the engine block–corrosion here creates a voltage drop, reducing output by 10-15%.
Voltage Drop Analysis Across Key Connections
Use a multimeter in voltage drop mode with the engine running. Measure across the battery positive terminal to the alternator’s B+ stud–acceptable drop is less than 0.2V. Higher readings point to oxidized cable ends, undersized wiring, or loose mounting bolts transferring current poorly. Clean surfaces with a wire brush and apply dielectric grease to prevent future corrosion.
A tachometer signal problem often stems from a broken or shorted stator wire. Disconnect the pigtail and check for continuity between the tan/white wire and ground–resistance should be 50-150 ohms. Open circuits here cause erratic RPM readings and charging instability. If continuity exists, inspect the wiring harness for chafing against valve covers or exhaust manifolds.
For intermittent charging issues, focus on the voltage regulator’s thermal behavior. Run the engine until fans cycle, then measure output. A drop exceeding 0.8V under load suggests regulator failure. Swap with a known-good unit–aftermarket regulators often lack temperature compensation, causing premature wear.
Harness Integrity and Common Failure Points
Trace the main charging circuit from the back of the unit through the harness bundle. Pay special attention to areas where wires bend sharply near brackets or pass through bulkheads–frayed insulation here causes shorts to ground. Use heat shrink tubing over damaged sections, not electrical tape, which degrades under heat and vibration. If the harness shows repeated failures, reroute it away from sharp edges or high-temperature zones using nylon loom.
